A friend gave me this old vintage AIM65 from Rockwell - (1975)
Well... No 24 Volt yet... "PRINTER DOWN"
Wondering about the limit of installed RAM, only 1K on board, I looked closer to the motherboard and found ...
...
this BLACK devel...
Had som 2114 RAM, so now there is 3 K RAM onboard. |

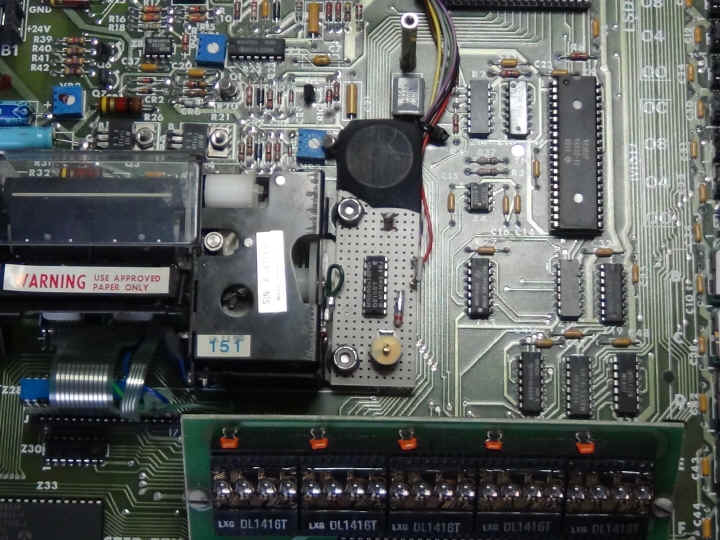

What is this blok of things ???
This is a watch-krystal, so it must be a "System Watch Interface" |

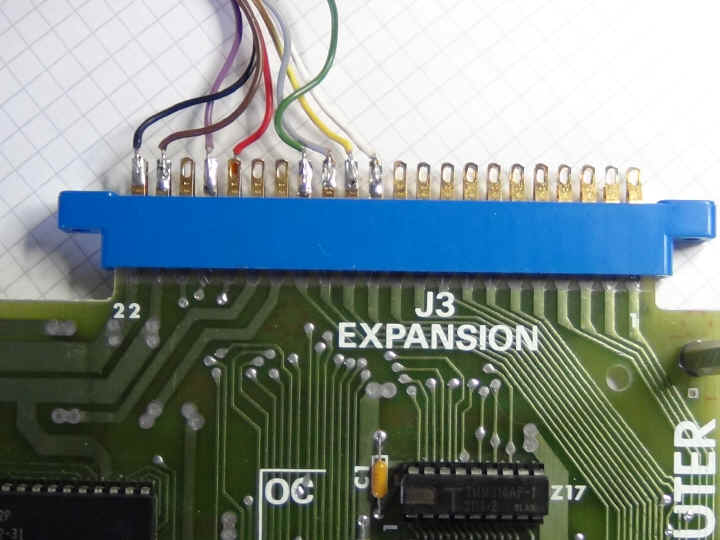

Interfaced to the expanding Bus here...
Pin
used is:
White, Yellow, Gray and Green = D0 - D3 RED = SYS R/W LILLA = CS9 BROWN = + 5 Volt BLACK = GND (0 Volt) NO other connection under the PCB !!! I can remowe the connector from the bus, without any problem, NOTHING happends... BUT BUT BUT... Not so clever made... It hangs up the lower part of RAM-memory, so I remowed it from the AIM65. |
